Osha ships ladder standards

Portable ladder safety is a critical concern in construction and industrial environments, where falls account for a significant number of workplace injuries.

Among the key regulatory guidelines, OSHA’s ships ladder standards provide specific requirements to ensure safe access in confined or vertical workspaces. These standards detail the proper design, installation, and use of ships ladders, including maximum angle, rung spacing, and structural strength.

Though often confused with other portable ladders, ships ladders have unique specifications due to their fixed, near-vertical orientation. Understanding and complying with OSHA’s regulations helps prevent accidents, enhances worker safety, and ensures job sites meet federal safety mandates.

Average racial discrimination settlement amount

Understanding OSHA Ship's Ladder Standards for Safe Maritime Access

The Occupational Safety and Health Administration (OSHA) establishes strict regulations to ensure the safety of workers in various industrial environments, including maritime operations. Among these regulations are specific standards for ship’s ladders, which are commonly used to provide access between different levels on vessels, docks, and marine platforms.

These ladders differ from other fixed ladders in design and function, typically being installed at a steep angle—often between 50 and 70 degrees from the horizontal—and are intended for short vertical traverses on the sides of ships or between decks.

OSHA’s ship’s ladder standards, found primarily in 29 CFR 1910.27 and related maritime sections, define construction, dimensional, and safety requirements to minimize fall hazards and ensure reliable use under demanding sea and industrial conditions. Compliance with these standards is critical for protecting maritime workers, ensuring structural integrity, and avoiding regulatory penalties.

Design and Construction Requirements for OSHA-Compliant Ship’s Ladders

OSHA mandates specific design and construction standards for ship’s ladders to ensure they can safely support users under realistic working conditions.

Average settlement for racial discrimination

According to regulation 29 CFR 1910.27, ship’s ladders must be constructed of durable materials such as metal or other equivalent strength materials to withstand corrosion and heavy usage, particularly in harsh marine environments.

The rungs must be uniformly spaced between 12 and 18 inches apart, with a minimum diameter of 1 inch for round rungs, and must offer slip-resistant surfaces. The side rails should extend at least 36 inches above the top support point if no handrail is present, or alternatively, a grab bar or handhold must be provided.

Additionally, ship’s ladders are typically required to be fixed at an angle between 50 and 70 degrees from the horizontal, allowing for a more vertical ascent while still permitting safe foot and hand placement. These design considerations ensure the ladder remains stable and usable even during vessel motion or adverse weather.

Guardrails and Fall Protection Measures on Ship’s Ladders

Fall protection is a critical component of OSHA's ship’s ladder standards, especially given the often precarious marine working environment. When a ship’s ladder exceeds a certain height—specifically, when the fall distance is greater than 10 feet—guardrails, handrails, or personal fall arrest systems must be provided.

Bank racial discrimination

While ship’s ladders typically do not require cages or wells (unlike fixed industrial ladders), they must be equipped with handrails or grab bars at both the top and bottom landings to assist workers during ascent and descent. In cases where the ladder leads to an open deck edge, OSHA requires that guardrails or personal protective systems be in place to prevent accidental falls overboard.

Additionally, ladder access points must be clearly marked and kept free of obstructions to reduce tripping hazards. These fall prevention measures are essential for safeguarding personnel working at height on ships or docks, where a fall could result in serious injury or fatality.

Inspection, Maintenance, and Compliance with OSHA Regulations

Regular inspection and maintenance are vital to ensure continued compliance with OSHA’s ship’s ladder standards and to protect worker safety.

Employers are required to implement a routine inspection program to check for structural wear, corrosion, loose rungs, or damaged handrails—common issues in marine environments due to constant exposure to saltwater and changing weather.

Black americans who experience frequent racial discrimination develop shorter

Any ladder found to be defective must be immediately taken out of service until repaired or replaced. OSHA recommends documenting these inspections and maintenance activities to demonstrate compliance during audits or investigations.

Furthermore, employees must be trained on the proper use of ship’s ladders and the importance of following safety procedures, such as maintaining three-point contact whenever possible. Compliance not only reduces accident risks but also helps avoid citations and costly penalties during OSHA inspections.

OSHA Ship Ladder Standards: A Comprehensive Safety Compliance Guide

What are OSHA's handrail requirements for ship ladders under maritime standards?

Handrail Height and Clearance Requirements for Ship Ladders

OSHA's maritime standards specify precise dimensions for handrails on ship ladders to ensure worker safety during ascent and descent.

Proper height and clearance are critical to prevent slips, falls, and loss of balance in the often unstable environment aboard vessels. Compliance with these measurements helps maintain consistent access and egress in confined and high-traffic areas.

1. Handrails on ship ladders must be installed at a height between 30 and 34 inches above the leading edge of the treads, measured vertically to ensure ergonomic hand placement during use.
2. The clearance between the handrail and any nearby structure or wall must be at least 2.25 inches to allow sufficient finger and hand clearance, reducing the risk of pinching or entrapment during operation.
3. Where ship ladders are inclined at angles greater than 50 degrees from the horizontal, OSHA requires that handrails be positioned to allow continuous gripping along the entire climbing path, ensuring stability in steep or vertical configurations.

Material and Structural Integrity Standards

The durability and strength of handrails on ship ladders are governed by OSHA regulations to withstand both routine use and emergency situations common in maritime environments.

Exposure to saltwater, vibration, and mechanical stress necessitates robust construction and corrosion-resistant materials. These standards help ensure that handrails do not fail under operational loads or during evacuation procedures.

1. Handrails must be constructed from materials that resist corrosion, such as stainless steel or galvanized metal, particularly in marine atmospheres where moisture and salt exposure are high.
2. Each handrail must support a minimum load of 200 pounds applied in any downward or outward direction at any point along the top edge to ensure structural reliability during use.
3. Connections, brackets, and supports must be securely fastened to the ladder or supporting structure to prevent loosening due to vessel movement, vibration, or repeated usage over time.

Configuration and Continuity Requirements

For safe navigation on ship ladders, OSHA emphasizes the need for continuous and consistently configured handrails to support workers throughout their climb.

Interruptions or irregularities in handrail design can lead to loss of balance, especially in emergency situations or during adverse sea conditions. Uniformity in design enhances predictability and user confidence.

1. A continuous handrail must extend along the full length of the ladder, from a point not less than 72 inches above the lower landing to a point at least 36 inches above the upper landing, providing constant support during ascent and descent.
2. If a ship ladder spans multiple levels or includes intermediate platforms, handrails must remain unbroken and aligned to ensure uninterrupted handhold continuity across transitions.
3. Handrails should return smoothly to the ladder structure or extend into adjacent walls or guardrails to eliminate protruding ends that could pose a snag or injury hazard in confined passageways.

What are the OSHA standards for fixed ladders on ships in PDF format?

OSHA Standards Applicable to Fixed Ladders on Ships

1. OSHA regulations primarily governed under 29 CFR 1910, particularly Subpart D (Walking-Working Surfaces), apply to fixed ladders in general industry settings, which includes certain vessel operations, particularly when ships are under construction, repair, or in dry dock. While OSHA does not have a standalone standard exclusively for ships at sea, fixed ladders on ship structures in U.S. shipyards or during shipbuilding activities fall under OSHA’s jurisdiction. The standard 29 CFR 1910.28(b)(9) outlines requirements for fixed ladders, including those on marine structures, specifying that fixed ladders over 24 feet in height must have fall protection systems, such as a personal fall arrest system or a ladder safety system.
2. For ships undergoing construction or repair, OSHA's standards align with ANSI A14.3, which designates criteria for installation, load capacity, side rail strength, and rung spacing. Ladders must support at least twice the maximum intended load and maintain rung spacing between 10 to 14 inches. These standards are intended to prevent slipping, structural failure, and falls during vertical transit on vessels where space and structural conditions are often constrained.
3. It is important to note that while OSHA does regulate shipyard employment under 29 CFR 1915, specific ladder standards in that subpart refer back to 1910 requirements. Therefore, compliance with fixed ladder safety on ships in U.S. shipyards requires adherence to the updated walking-working surfaces rule issued in 2017, ensuring that access and egress systems, including fixed ladders, are designed and maintained with worker safety in mind.

Accessing OSHA Standards for Fixed Ladders in PDF Format

1. Official OSHA standards related to fixed ladders are available in PDF format through the Occupational Safety and Health Administration’s website (www.osha.gov). The primary document of interest is 29 CFR 1910, specifically Subpart D – Walking-Working Surfaces, which includes sections 1910.28 and 1910.29 covering duty requirements and design criteria for fall protection and ladder systems. Users can download the entire regulation package or specific sections directly from OSHA’s eTools and publications portal.
2. The U.S. Department of Labor provides a structured PDF of the Code of Federal Regulations (CFR), which is updated annually. The most relevant version for fixed ladder standards can be obtained from the Electronic Code of Federal Regulations (e-CFR) website, with PDF output available through official government archives such as the Government Publishing Office (www.gpo.gov). Search for “29 CFR 1910.28” and “1910.29” to extract focused content.
3. Additionally, OSHA’s Safety and Health Regulations for Shipyard Employment (29 CFR 1915) includes references to ladder safety in shipboard environments, particularly during construction and repair. This document is also available in downloadable PDF format and contains specific provisions relevant to maritime workplaces. Employers and safety officers can access these files for compliance training and on-site reference.

Key Design and Safety Features Required for Shipboard Fixed Ladders

1. Fixed ladders on ships must comply with specific dimensional and structural criteria to ensure safe access in often challenging maritime conditions. According to OSHA, the clear width of fixed ladders should be at least 16 inches, with a minimum perpendicular clearance of 7 inches behind the ladder. This ensures sufficient room for workers wearing protective gear to climb safely, even in confined shipboard areas such as engine rooms or cargo holds.

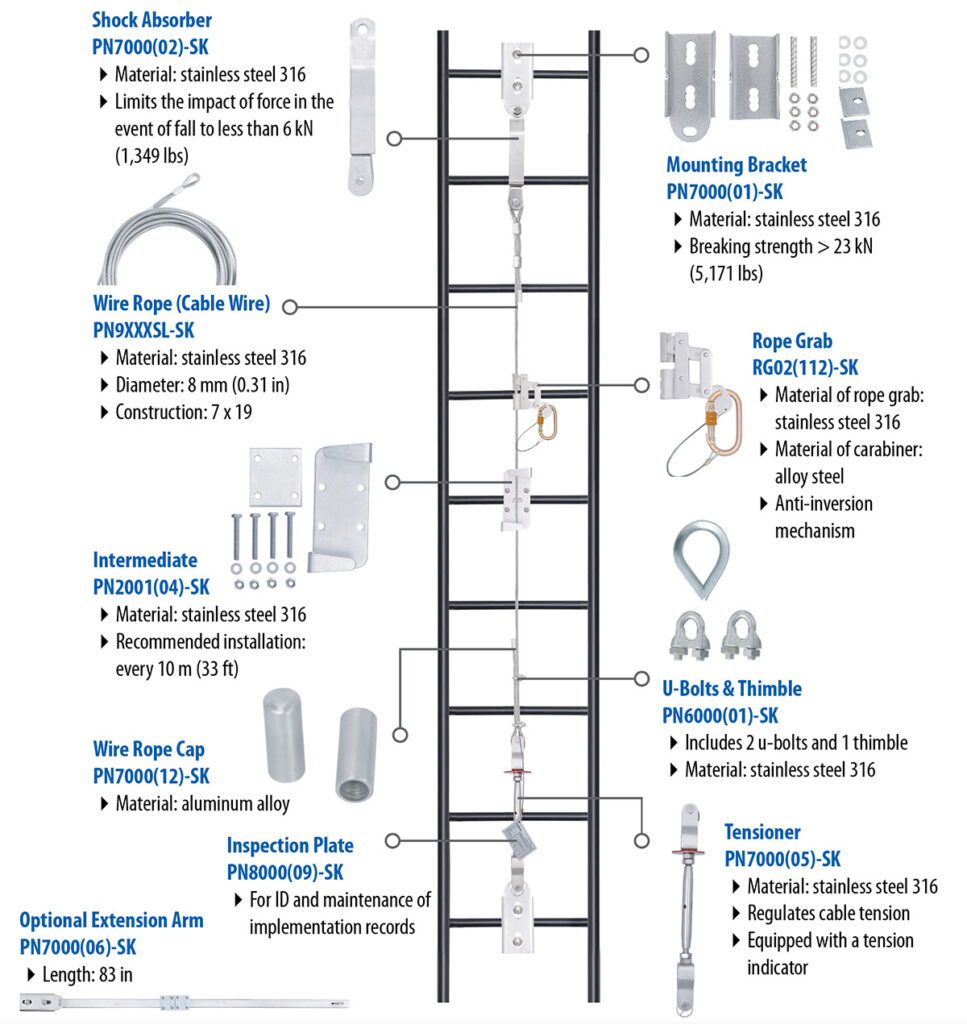

2. When a fixed ladder extends more than 24 feet above a lower level, OSHA mandates the use of a ladder safety system or a personal fall arrest system. These systems typically include a fixed cable, carabiner, full-body harness, and self-retracting lanyard or rope grab. The purpose is to prevent serious injury in the event of a slip or loss of balance, which is especially critical on ships where footing may be compromised due to ship motion or wet surfaces.
3. For structural integrity, fixed ladders must be securely anchored and constructed from corrosion-resistant materials, particularly in marine environments where exposure to saltwater and humidity is common. OSHA requires periodic inspection and maintenance of ladder components, including rungs, side rails, and anchoring points. Employers must also ensure that ladders are free from oil, grease, and obstructions, and that lighting is adequate at ladder access points on vessels.

What are OSHA's stair and ship ladder requirements in PDF format?

OSHA General Stairway and Ladder Standards Overview

1. OSHA's regulations for stairways and ladders are primarily covered under 29 CFR 1910.23 and 1910.25 for general industry, and 29 CFR 1926.1050 and 1926.1051 for construction. These standards apply to all stairways and ladders used in the workplace to prevent falls and ensure safe access.
2. The standards require that all stairways and ladders are designed and constructed to support at least four times the maximum intended load. This ensures structural integrity under typical use conditions, including any additional tools or materials workers may carry.
3. Regular inspection of stairways and ladders is mandated. Any defective equipment must be removed from service immediately and tagged to prevent use until repaired or replaced. This includes checking for loose treads, damaged handrails, and slippery surfaces.

Specific Requirements for Fixed Stairways

1. Fixed stairs must have a uniform riser height and tread depth. OSHA specifies that the rise should be between 6.5 and 12 inches and the tread depth no less than 9.5 inches. This ensures predictability and reduces the chance of missteps.
2. Handrails and stair rails are mandatory when stairs have four or more risers. Handrails must be installed between 30 and 37 inches above the leading edge of the tread and must be capable of withstanding 200 pounds of force applied in any downward or outward direction.
3. The walking surface of stairways must be slip-resistant and free of obstructions. Platforms must be provided where necessary to allow safe changes in direction, and the minimum clear width of stairways must be at least 22 inches unless used as a means of egress, which may require more.

Ship Stair and Alternating Tread Stair Requirements

1. Ship stairs, often used in marine environments or limited-space installations, must have a slope between 50 and 70 degrees from the horizontal. They must be equipped with handrails on both sides to ensure stability during use.
2. Alternating tread stairs are permitted only when the available space for full standard stairs is limited. They must be designed and installed so that stepping from one tread to the next follows a natural motion, reducing trip risks.
3. These specialized stairs must include a platform or landing every 12 feet or less of vertical rise. Additionally, they must not be used as the primary means of access in high-traffic areas, and workers must receive specific training on their proper use due to the unique foot placement required.

Frequently Asked Questions

What are the OSHA requirements for the height of a ship's ladder?

OSHA requires ship's ladders to be installed at a pitch between 50 and 70 degrees from the horizontal. There is no specific maximum height limit, but if the ladder exceeds 30 feet, OSHA mandates rest platforms or landing areas at intervals. These ladders must have treads and special safety features to prevent slipping. The design ensures safe access in confined or steep spaces commonly found on vessels.

Do OSHA ship's ladders need handrails?

Yes, OSHA standards require ship's ladders to have a grab bar or handrail on at least one side. The handrail must be continuous along the entire length of the ladder to provide constant support. It should be positioned so users can maintain three-point contact. This requirement enhances stability and reduces fall risks, especially in marine environments where movement and slippery conditions are common during vessel operation.

What materials are acceptable for OSHA-compliant ship's ladders?

OSHA does not specify exact materials but requires that ship's ladders be made of durable, corrosion-resistant materials suitable for marine environments. Common choices include marine-grade aluminum, stainless steel, or treated metals. The materials must support intended loads without deformation and resist environmental degradation. All components, including treads and handrails, must remain structurally sound over time to ensure continued safety and compliance.

How often should ship's ladders be inspected under OSHA guidelines?

OSHA does not specify an exact inspection frequency for ship's ladders, but employers must ensure regular inspections to identify damage, corrosion, or wear. In maritime environments, monthly visual checks are recommended due to harsh conditions. Any defects must be repaired immediately. Documentation of inspections helps maintain compliance and ensures safe access, protecting workers from slips, trips, and falls during routine vessel operations.
